Lugar de origen: | China |
---|---|
Nombre de la marca: | JISAN |
Certificación: | CE,ISO |
Número de modelo: | JSP20 |
Cantidad de orden mínima: | 1 set |
Precio: | Negotiation ( EXW , FOB or CIF price ) |
Detalles de empaquetado: | Casos o plataformas de madera de la exportación |
Tiempo de entrega: | 5-7 días laborables |
Condiciones de pago: | L / C, T / T, Western Union |
Capacidad de la fuente: | 1000 sistemas por año |
Color: | Verde o como petición | Frecuencia: | 2800 RPM |
---|---|---|---|
Peso: | 2600 kilogramos | Después de servicio: | 12 meses |
Condición: | El 100% nuevo | Paquete: | Casos de madera de la exportación o como petición |
Alta luz: | Excavador Vibratory Pile Hammer de KATO HD820,Un excavador más de poco ruido Vibratory Pile Hammer,Excavador fácil Pile Hammer de la operación |

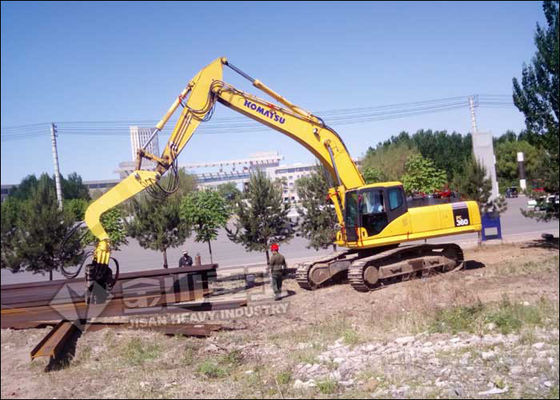

Hydraulic Pile Hammer Driving Machine Pile Driver For KATO Excavator HD820
Advantage
1. Easy operation
2. Flexible control
3. lower Noise
4. Easy maintenance
5. Precision Design
6. Reliable Performance
7. Quick Speed
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
6. Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Parameter
ItemModel | Unit | JSP20 | JSP40 | |
Eccentric Moment | Nm | 40 | 85 | |
Frequency | rpm | 2800 | 2800 | |
Centrifugal Force | KN | 300 | 570 | |
Amplitude | mm | 6.8 | 14 | |
Working Pressure | bar | 280 | 300 | |
Oil Flow | L/min | 155 | 255 | |
Max Turning | degree | 270 | 270 | |
Weight | Main Body | kg | 2080 | 2940 |
Extension Boom | kg | 740 | 1070 | |
Total weight | kg | 2900 | 4100 | |
Applicable Excavator | Ton | 20-30 | 35-50 |
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
